2D Fiber Laser
정밀한 절단, 완벽한 품질
고속 · 고효율 평판 레이저 솔루션
We design and build digital products people enjoy using...
Hey! Recently we were working on a project for ..We design and build digital products people enjoy using...
We are a Creative Digital Agency based in Buenos Aires, Argentina. We take pride in designing and building...
A new project is an opportunity to create something unique.We are a Creative Digital Agency based in Buenos Aires, Argentina. We take pride in designing and building...
As an interdisciplinary agile team, our production process is flexible, collaborative, and adapts to each client’s needs
We look forward to working with you on your next projectAs an interdisciplinary agile team, our production process is flexible, collaborative, and adapts to each client’s needs
We are working on the UX/UI design for a large hotel owners and hospitality management company.
Style Tiles are always a good option to show work in progress!We are working on the UX/UI design for a large hotel owners and hospitality management company.
More shots with final designs coming soon.
You can check the attachment for a full view..More shots with final designs coming soon.
we streamline the process without having to make multiple mockups.
This is a proposal to add value to a crowdfunding listing pagewe streamline the process without having to make multiple mockups.
Style tiles serve as a flexible starting point that helps us easily communicate the essence of a visual brand for the web.
Clients easily understand themStyle tiles serve as a flexible starting point that helps us easily communicate the essence of a visual brand for the web.
We are working on an exciting project for a company in the investment business. Stay tuned!
we have a lot of fun during this phase.We are working on an exciting project for a company in the investment business. Stay tuned!
We design and build digital products people enjoy using...
Hey! Recently we were working on a project for ..We design and build digital products people enjoy using...
We are a Creative Digital Agency based in Buenos Aires, Argentina. We take pride in designing and building...
A new project is an opportunity to create something unique.We are a Creative Digital Agency based in Buenos Aires, Argentina. We take pride in designing and building...
As an interdisciplinary agile team, our production process is flexible, collaborative, and adapts to each client’s needs
We look forward to working with you on your next projectAs an interdisciplinary agile team, our production process is flexible, collaborative, and adapts to each client’s needs
We are working on the UX/UI design for a large hotel owners and hospitality management company.
Style Tiles are always a good option to show work in progress!We are working on the UX/UI design for a large hotel owners and hospitality management company.
More shots with final designs coming soon.
You can check the attachment for a full view..More shots with final designs coming soon.
we streamline the process without having to make multiple mockups.
This is a proposal to add value to a crowdfunding listing pagewe streamline the process without having to make multiple mockups.
Style tiles serve as a flexible starting point that helps us easily communicate the essence of a visual brand for the web.
Clients easily understand themStyle tiles serve as a flexible starting point that helps us easily communicate the essence of a visual brand for the web.
We are working on an exciting project for a company in the investment business. Stay tuned!
we have a lot of fun during this phase.We are working on an exciting project for a company in the investment business. Stay tuned!
We design and build digital products people enjoy using...
Hey! Recently we were working on a project for ..We design and build digital products people enjoy using...
We are a Creative Digital Agency based in Buenos Aires, Argentina. We take pride in designing and building...
A new project is an opportunity to create something unique.We are a Creative Digital Agency based in Buenos Aires, Argentina. We take pride in designing and building...
As an interdisciplinary agile team, our production process is flexible, collaborative, and adapts to each client’s needs
We look forward to working with you on your next projectAs an interdisciplinary agile team, our production process is flexible, collaborative, and adapts to each client’s needs
We are working on the UX/UI design for a large hotel owners and hospitality management company.
Style Tiles are always a good option to show work in progress!We are working on the UX/UI design for a large hotel owners and hospitality management company.
전면 밀폐형 구조
FULL ENCLOSED STRUCTURE
전면 밀폐형 구조와 전용 광섬유 방호 창, 구역별 집진 시스템으로 방진, 방연, 방사선 차단이 가능한 안전하고 청정한 생산 환경을 제공합니다.
GP 시리즈는 전 모델에 중공 베드 구조를 적용하여, 레이저 가공 시 열이 프레임에 전달되지 않도록 설계되었습니다.
열에 의한 변형이 없고, 기계의 강성과 안정성이 뛰어나 공진을 최소화하며 장기간 안정적인 가공이 가능합니다.
항공 알루미늄 소재를 압출 성형한 후 일체형 용접을 통해 프레임을 구성하고,고온 풀림(어닐링)으로 내부 응력을 제거한 뒤 1차 정밀 가공을 진행합니다.
이후 2차 진동 시효 처리(VSR)를 거쳐 최종 정밀 가공을 완료함으로써, 크로스빔의 강도, 강성 및 가공 안정성을 극대화하였습니다.
전방위 시야를 갖춘 고성능 비전 감지 카메라를 탑재하여,작업 중 주변 환경을 실시간으로 모니터링하고 위험 요소를 즉시 감지합니다.
언제 어디서나 사용자의 안전을 지키는 스마트 시각 보호 시스템입니다.
교환 테이블 이중 모터 구조를 채택하여,두 작업대가 모두 보조 베드 쪽으로 완전히 이동 가능하도록 설계되었습니다.
이를 통해 기계 내부의 폐자재 청소와 소형 부품의 수거 작업이 더욱 간편하고 효율적으로 이루어집니다.
전방위 시야를 갖춘 고성능 비전 감지 카메라를 탑재하여,작업 중 주변 환경을 실시간으로 모니터링하고 위험 요소를 즉시 감지합니다.
언제 어디서나 사용자의 안전을 지키는 스마트 시각 보호 시스템입니다.
절단 헤드는 정밀한 광학 설계와 안정적인 구조를 바탕으로 고속 절단에서도 탁월한 성능을 발휘하며, 다양한 소재와 두께에 유연하게 대응합니다.
이를 통해 생산 현장의 절단 효율을 획기적으로 높이고, 전체 공정 시간을 단축시켜줍니다.

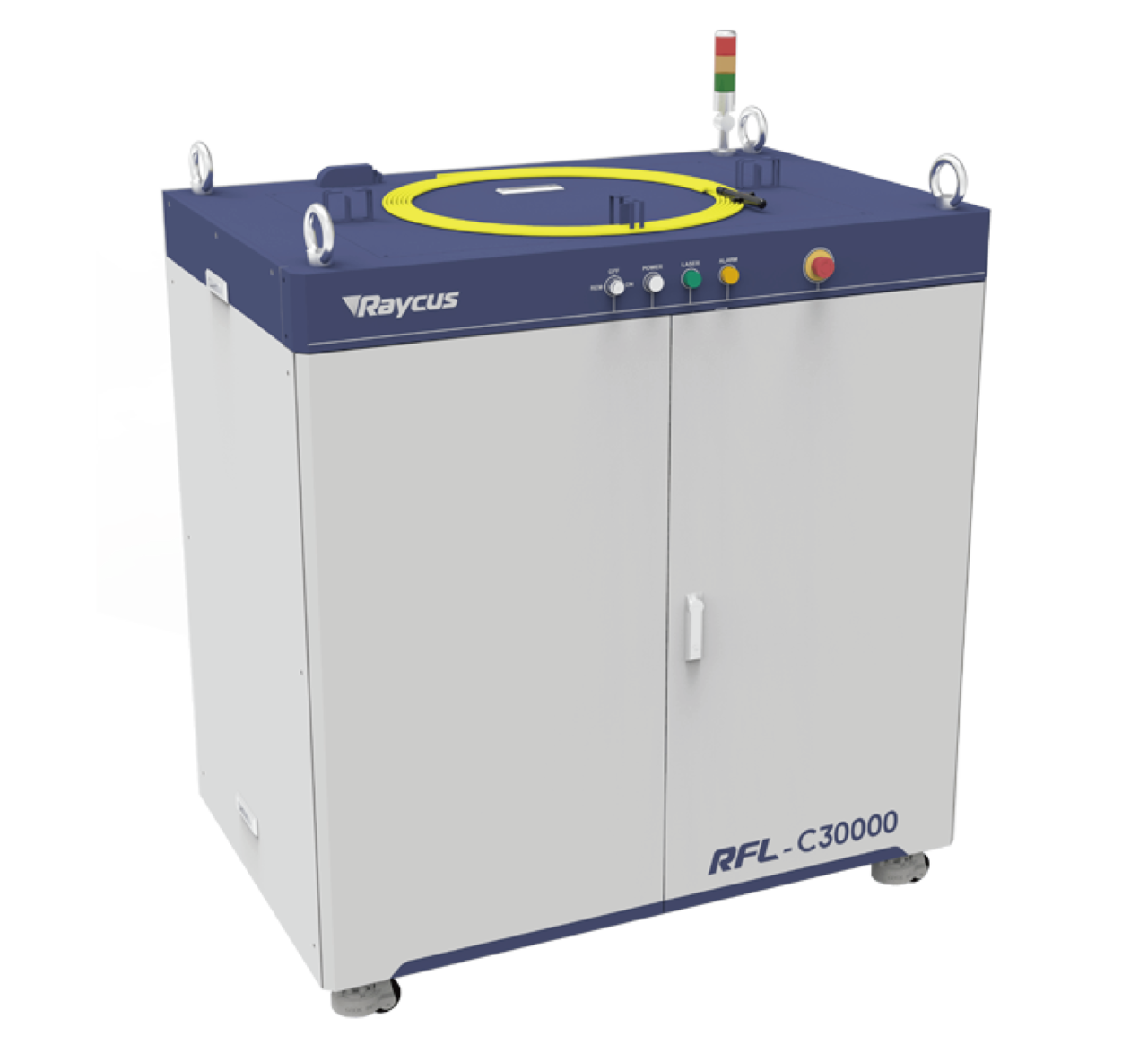

Raycus 파이버 레이저는 높은 광전 변환 효율을 자랑하며, 같은 출력에서도 더 적은 전력 소비로 강력한 절단 성능을 제공합니다.
이를 통해 에너지 비용을 절감하고, 가공 효율과 생산성을 모두 향상시킬 수 있습니다.

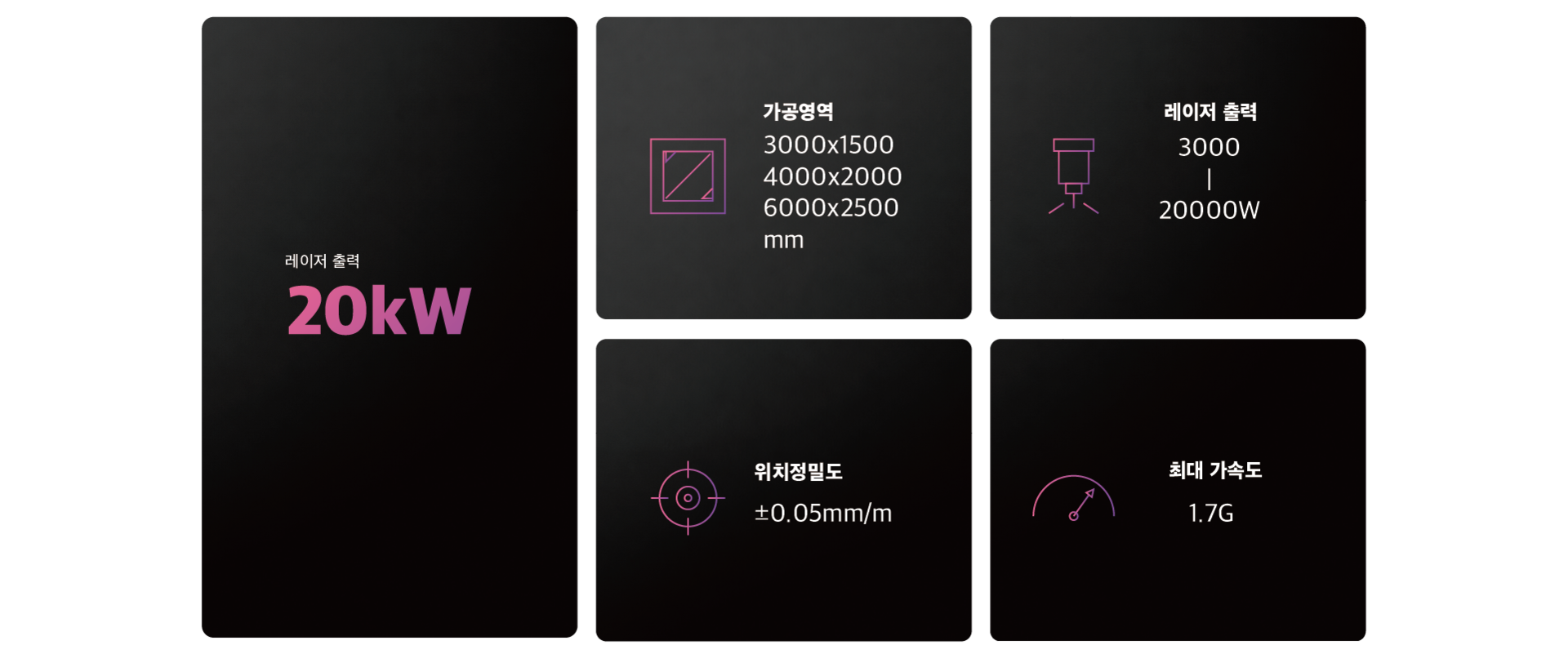

파라미터
| 장비모델 | GP3015 | GP4020 | GP6025 | GP8025 | GP12025 |
| 레이저출력 | 3000-20000W | ||||
| 가공범위(L*D) | 3050mm*1530mm | 4000mm*2000mm | 6050mm*2530mm | 8000mm*2500mm | 12500mm*2600mm |
| 최대 적재 하중 | 1500-3000kgs | 1500-3500kgs | 2000-6000kgs | 2000-6000kgs | 3000-10000kgs |
| 장비치수 | 9100*3000*2200mm | 11100*3600*2200mm | 15350*4050*2400mm | 19950*4050*2400mm | 28000*4550*2400mm |
| 장비중량 | 6900kg | 7800kg | 16500kg | 24000kg | 32000kg |
| Z축 이동 거리 | 300-400mm | ||||
| 플랫폼 최대 교환 시간 | 10-15S | 12-20S | 18-30 | 30-50S | 50-60S |
| 최대 연동 속도 | 130m/min | 130m/min | 150m/min | 150m/min | 150m/min |
| 최대 연동 가속도 | 1.2G | 1.2G | 1.5G | 1.5G | 1.5G |
| 위치 정밀도 | 0.03mm/m | 0.03mm/m | 0.05mm/m | 0.05mm/m | 0.05mm/m |
| 반복 위치 정밀도 | 0.02mm/m | 0.02mm/m | 0.04mm/m | 0.04mm/m | 0.04mm/m |
| 전원 요구사항 | 3상380V/50Hz & 60Hz | ||||
**본 사양은 시장 상황 및 제품 개선에 따라 사전 예고 없이 변경될 수 있으며, 참고용으로만 활용해 주시기 바랍니다.
