프라잉커팅, 스마트 충돌 방지
FAST CUTTING INTELLIGENT ANTI-COLLISION
프라잉 빠른 절단과 초고속 천공 공정을 채택하고, 내장형 스마트 충돌 방지 시스템을 통해 대량 절단 시 안정적인 품질과 높은 효율을 제공합니다.
It adopts flying fast cutting, extremely fast perforation process, built-inteligent anto-colision system, and batch cutting of plates Stable
quali-tyand high efficiency.

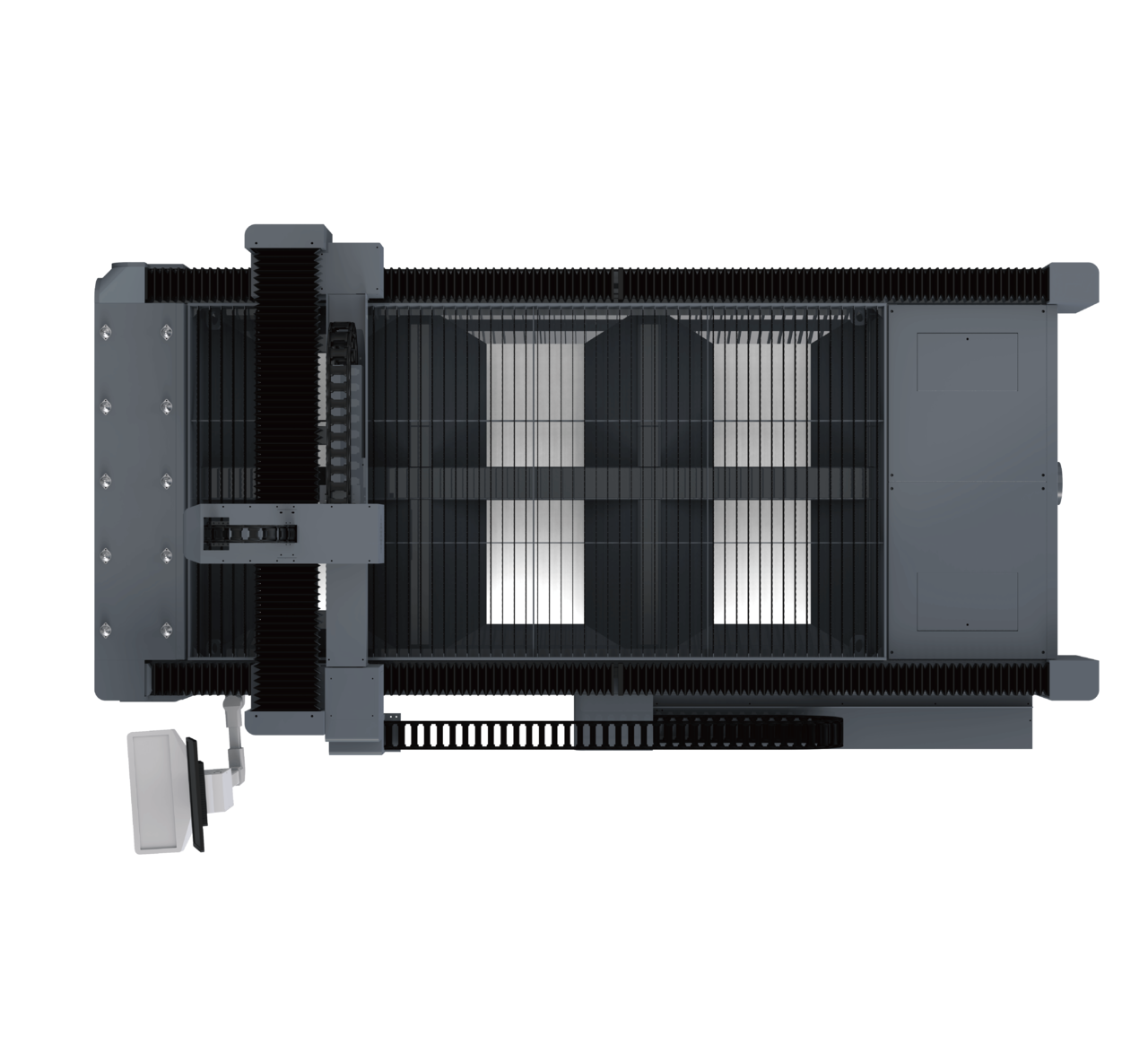

GA 시리즈는 반중공 구조의 프레임 설계를 채택하여, 레이저 절단 시 발생하는 열이 프레임 본체로 직접 전달되는 것을 효과적으로 방지합니다.
이로 인해 열변형을 최소화하고, 장비의 구조 강성 및 저공진 특성을 확보하여, 장시간 사용에도 안정적인 성능을 유지할 수 있습니다.
또한, 본 장비에는 스마트 분할 집진 시스템이 탑재되어 있습니다.
절단 헤드의 이동 경로를 실시간으로 감지하여 해당 영역만 선택적으로 집진하며, 구역별·구간별로 먼지를 효율적으로 흡입합니다.
이를 통해 고속 작업 환경에서도 연기나 분진의 축적 없이 쾌적한 작업 공간을 유지할 수 있습니다.
항공 알루미늄 소재를 압출 성형한 후 일체형 용접을 통해 프레임을 구성하고,고온 풀림(어닐링)으로 내부 응력을 제거한 뒤 1차 정밀 가공을 진행합니다.
이후 2차 진동 시효 처리(VSR)를 거쳐 최종 정밀 가공을 완료함으로써, 크로스빔의 강도, 강성 및 가공 안정성을 극대화하였습니다.
고출력 레이저 장비에 최적화된 스마트 제어 시스템으로, 설치가 쉽고 작동이 안정적이며 자동화 기능이 다양합니다. 고정밀 절단은 물론, 실시간 안전 보호와 빠른 응답으로 생산성을 높여줍니다. 다양한 작업 환경에 맞게 유연하게 적용할 수 있어 현장 효율을 극대화합니다.

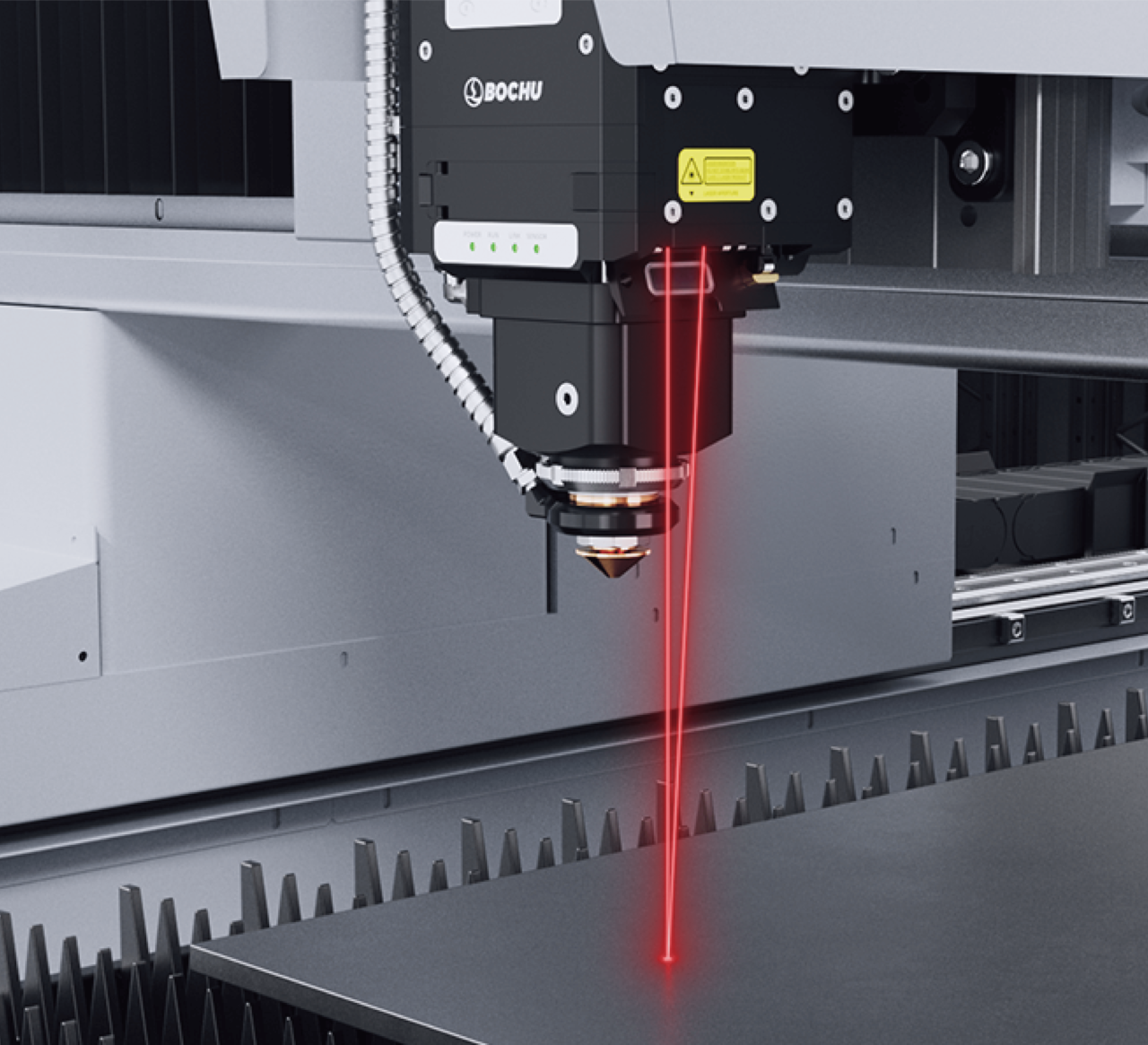

절단 헤드는 정밀한 광학 설계와 안정적인 구조를 바탕으로 고속 절단에서도 탁월한 성능을 발휘하며, 다양한 소재와 두께에 유연하게 대응합니다.
이를 통해 생산 현장의 절단 효율을 획기적으로 높이고, 전체 공정 시간을 단축시켜줍니다.

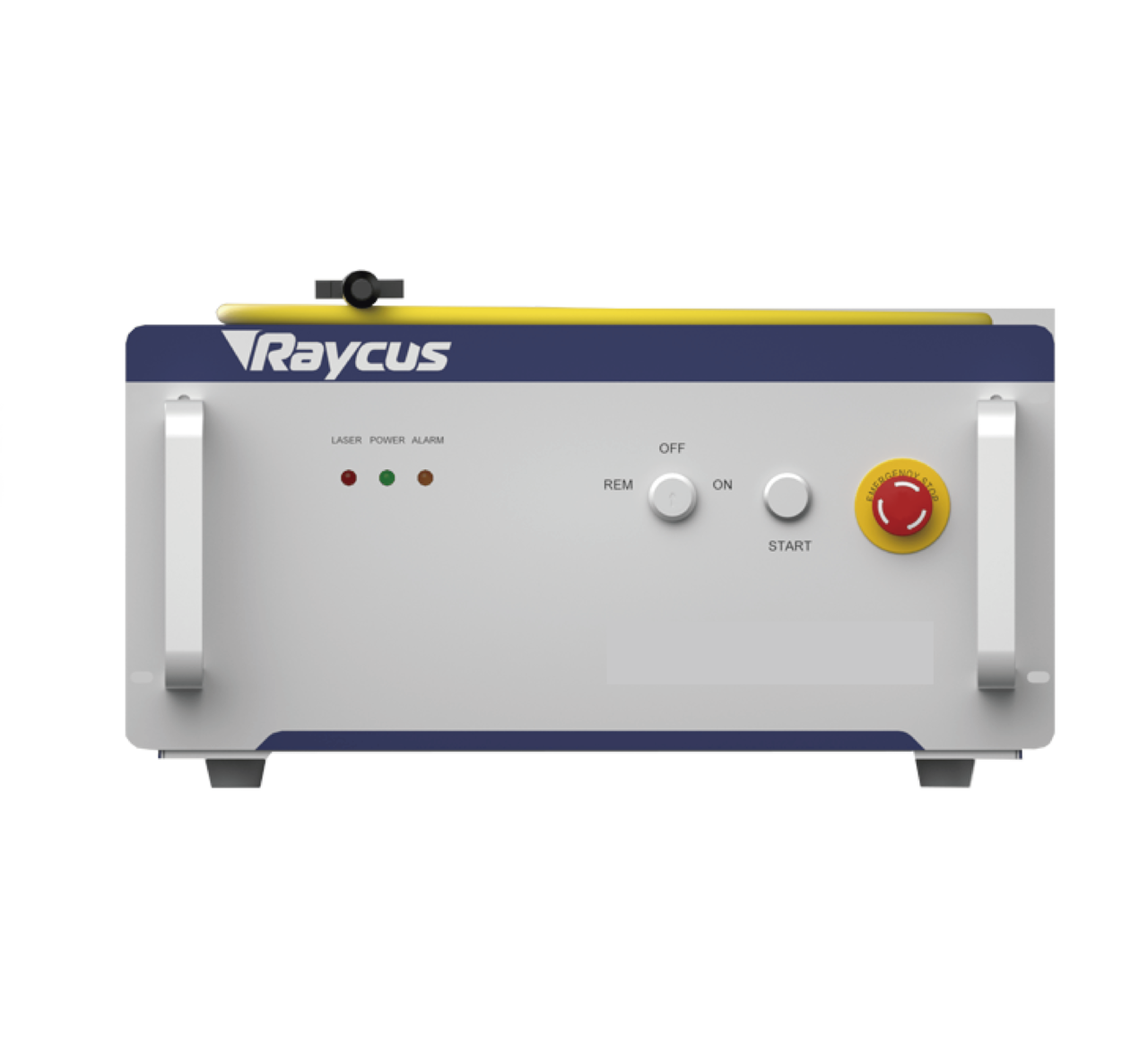

Raycus 파이버 레이저는 높은 광전 변환 효율을 자랑하며, 같은 출력에서도 더 적은 전력 소비로 강력한 절단 성능을 제공합니다.
이를 통해 에너지 비용을 절감하고, 가공 효율과 생산성을 모두 향상시킬 수 있습니다.

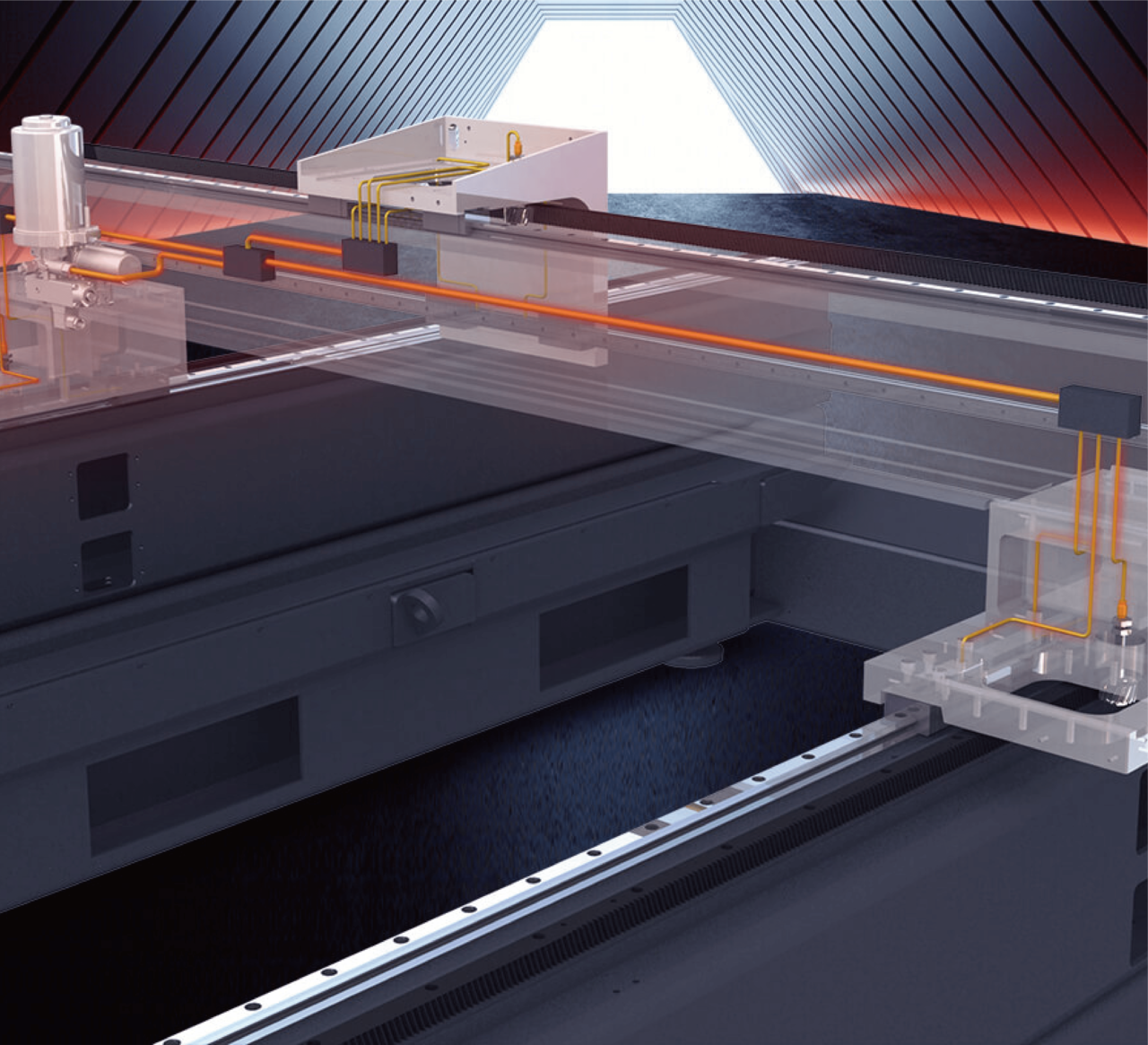

기계 전체에 고집적 자동 윤활 시스템이 탑재되어 있으며, 버튼 한 번으로 윤활 주기를 설정할 수 있어 유지보수가 매우 간편합니다.
시스템은 저유압 경보 및 오일 차단 보호 기능을 함께 제공하여, 윤활 부족으로 인한 장비 마모와 고장을 효과적으로 예방합니다.
이로 인해 장비의 안정성은 물론, 전체 수명과 작업 연속성까지 향상시킬 수 있습니다.
스마트 가스 제어 시스템은 프로그램에 따라 가스 종류와 압력을 자동으로 조절하며, 작업 중 별도의 수동 조작 없이 안정적인 절단 환경을 제공합니다.
또한, 절단 헤드 출구의 압력을 실시간으로 감지할 수 있고, 3개의 가스 라인 모두에 압력/유량 알람 및 필터 장치가 내장되어 있어, 절단 품질과 장비의 안전을 동시에 확보할 수 있습니다.
파라미터
장비모델 | GA3015 | GA4020 | GA6025 | GA8025 | GA13026 | GA14032 |
레이저출력 | 3000-20000W | |||||
가공범위(L*D) | 3050mm*1530mm | 4000mm*2000mm | 6050mm*2530mm | 8000mm*2500mm | 13000mm*2600mm | 14000mm*3200mm |
최대 적재 하중 | 1000-2500kgs | 1200-2500kgs | 1500-4500kgs | 2000-5000kgs | 3000-10000kgs | 3000-10000kgs |
장비치수 | 4800*2400*1900mm | 5900*2400*1900mm | 8000*3900*2000mm | 10300*3900*2000mm | 17800*3800*1900mm | 19000*4200*1900mm |
장비중량 | 1800-3000kgs | 2000-3500kgs | 3500-6500kgs | 4500-7000kgs | 11000-19500kgs | 13000-21000kgs |
최대 연동 속도 | 100mm | 100mm | 100-150mm | 120-150mm | 120-150mm | 120-150mm |
최대 연동 가속도 | 0.8G | 0.8G | 1.0G | 1.0G | 1.0G | 1.0G |
위치 정밀도 | 0.03mm/m | 0.03mm/m | 0.03mm/m | 0.05mm/m | 0.05mm/m | 0.05mm/m |
반복 위치 정밀도 | 0.02mm/m | 0.02mm/m | 0.02mm/m | 0.04mm/m | 0.04mm/m | 0.04mm/m |
전원 요구사항 | 3상380V/50Hz & 60Hz | |||||
**본 사양은 시장 상황 및 제품 개선에 따라 사전 예고 없이 변경될 수 있으며, 참고용으로만 활용해 주시기 바랍니다.
